Identify my trampoline

Identify My Trampoline

Not sure which trampoline you have? You need to know the model before you order a spare part such as a jumping mat, frame pad, safety net or springs. This page covers Telstar, Super Tramp and Akrobat trampolines. Take the three measurements below, then match them in the table for your brand.

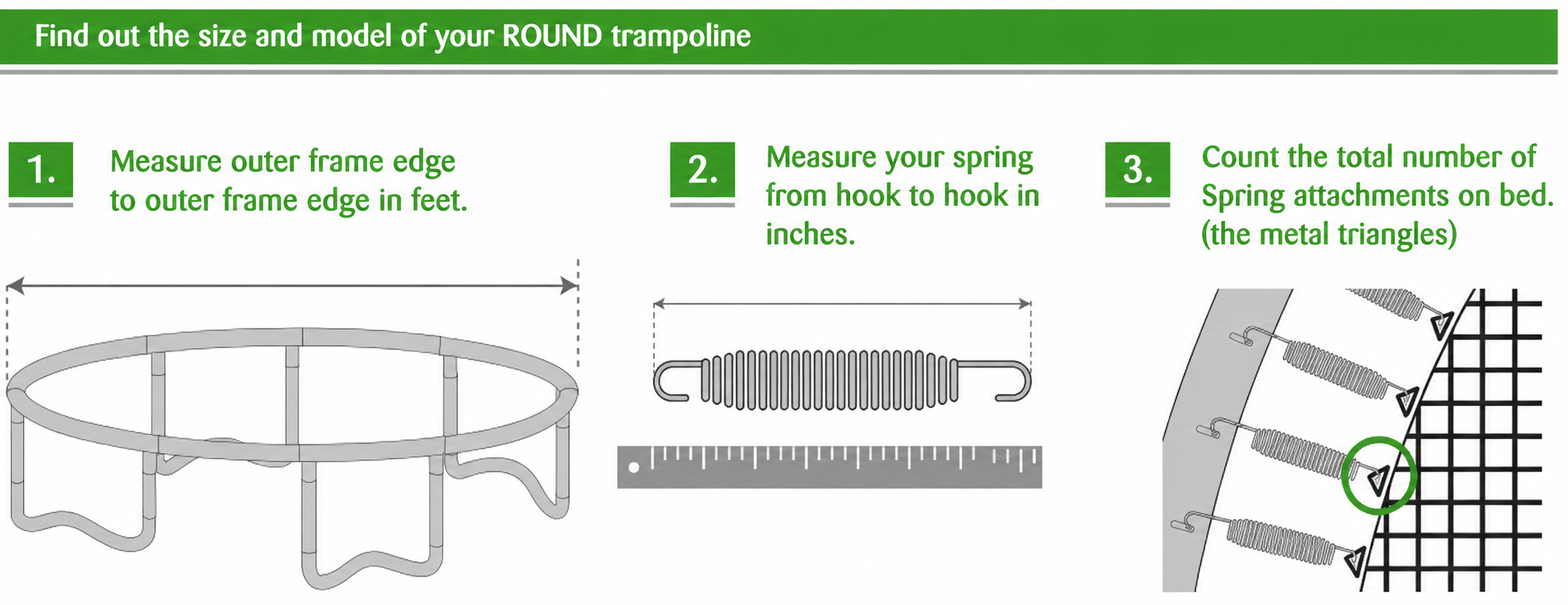

How to measure

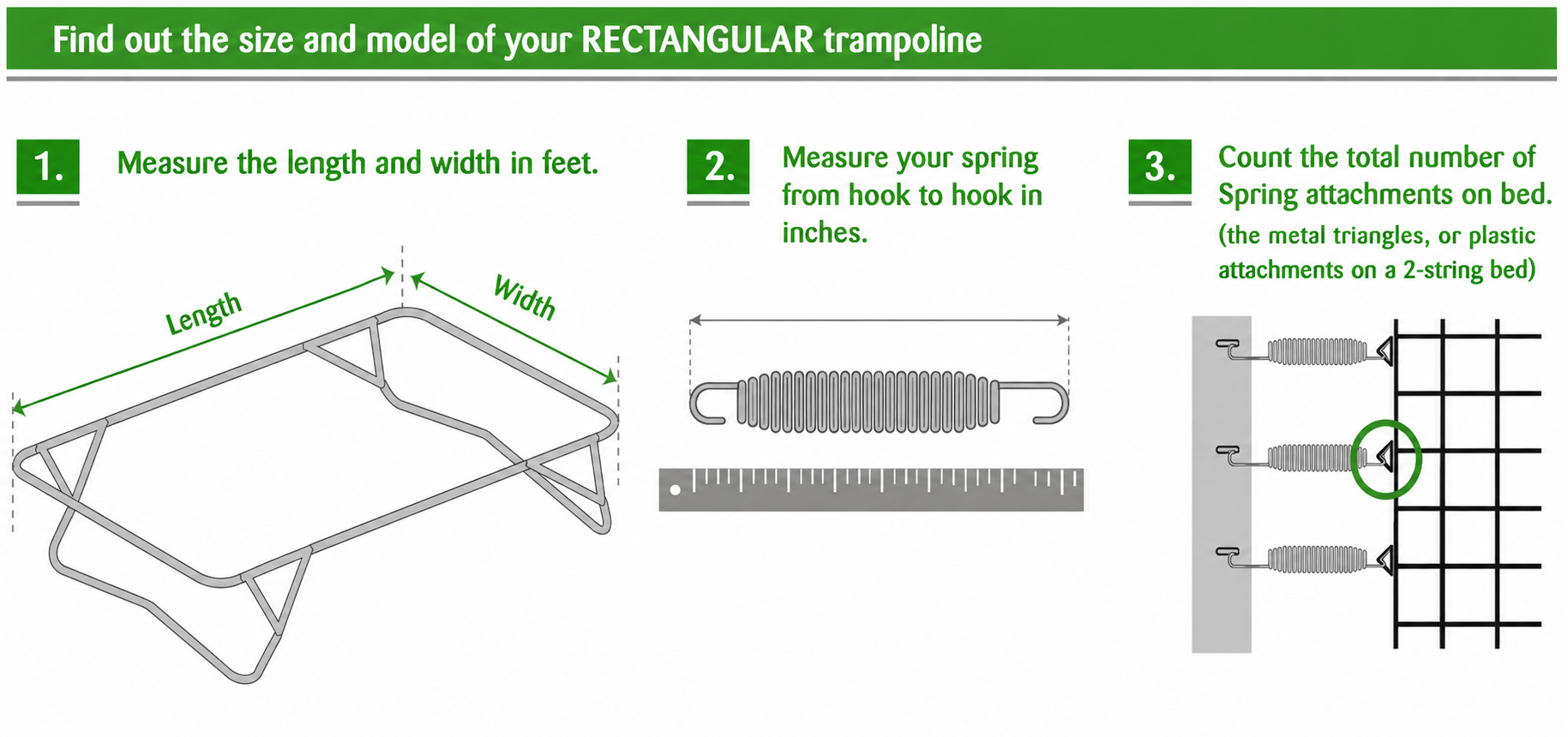

  1. Measure the frame. Go from outer edge to outer edge of the metal frame, in feet. Measure the frame, not the jumping mat. For oval and rectangular trampolines, measure both the length and the width.

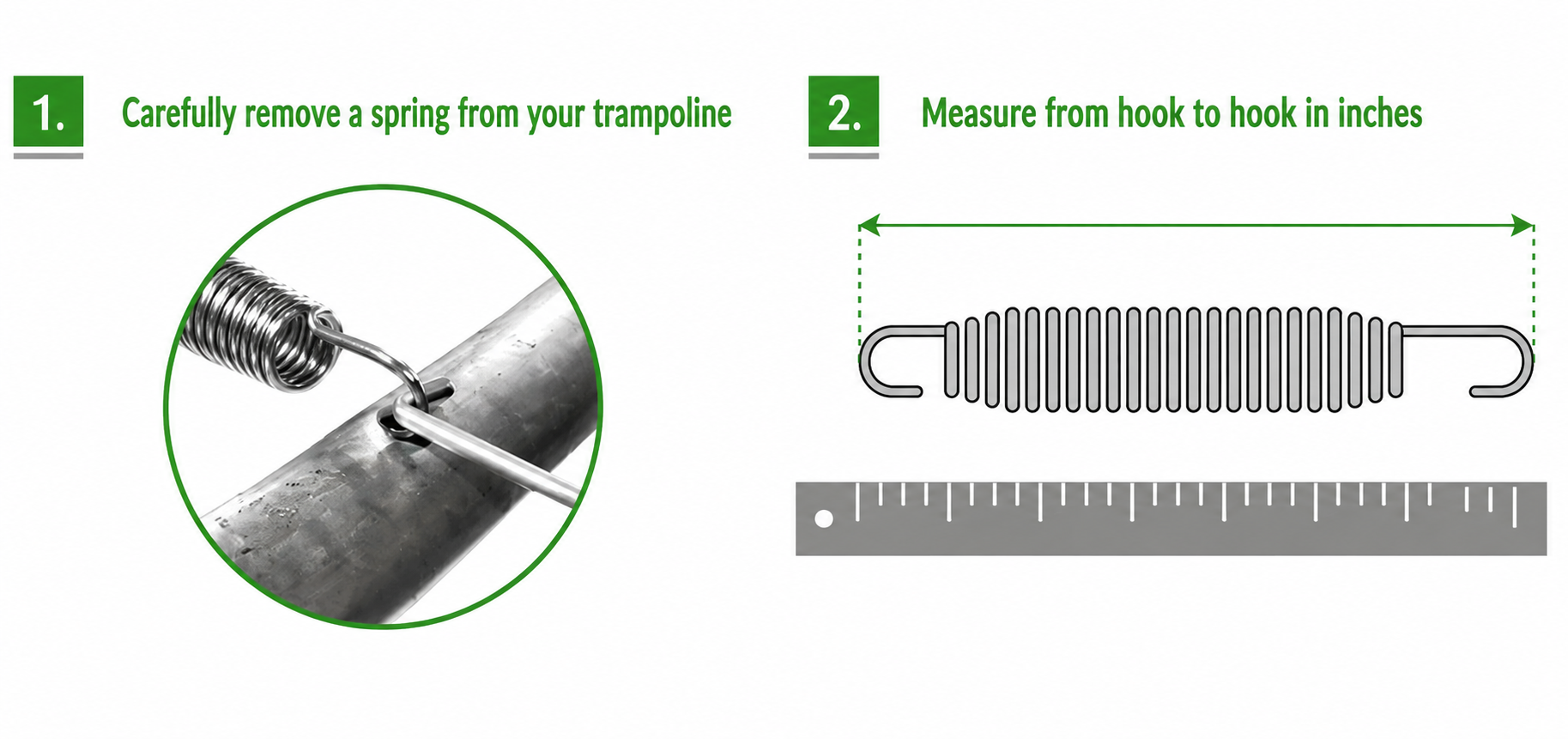

  2. Measure one spring. Take a spring off, lay it flat and measure from hook to hook, in inches.
  3. Count the spring attachments. Count the metal triangles all the way round the edge of the jumping mat. This is the number of springs your trampoline has.

How to measure a trampoline: measure the frame from outer edge to outer edge, measure a spring from hook to hook, and count the metal triangles on the jumping mat

Round your spring measurement down. Springs stretch a little with use, so yours may measure slightly longer than its original size. Round down to the nearest standard size: 5 inch, 5.5 inch, 7 inch, 8.35 inch, 8.5 inch or 9.25 inch.

Which brand is it?

Look for the brand name on the frame pad, the safety net, the jumping mat or a label on the frame. Then go to the table for that brand.

TelstarSuper TrampAkrobat

Telstar trampolines

Find the row that matches all three of your measurements. The last column is your trampoline.

Frame size Spring length Number of springs Your trampoline is
8ft 5 inch 48 Orbit
7ft x 10ft oval 5 inch 54 Orbit or Vortex BLACK*
10ft 5 inch 56 Orbit
8ft 5.5 inch 48 Vortex BLACK
10ft 5.5 inch 54 Vortex BLACK
10ft 5.5 inch 56 Jump Capsule MK3
7ft x 10ft oval 5.5 inch 58 Jump Capsule MK3
9ft x 13ft oval 7 inch 68 Vortex BLACK
9ft x 13ft oval 7 inch 72 Orbit
12ft 7 inch 72 Orbit or Vortex BLACK*
10ft x 15ft oval 7 inch 74 Orbit
10ft x 15ft oval 7 inch 78 Vortex BLACK
14ft 7 inch 88 Orbit or Vortex BLACK*
9ft x 13ft oval 8.5 inch 64 Jump Capsule MK3
8ft x 12ft 8.5 inch 64 Elite
12ft 8.5 inch 70 Jump Capsule MK3
12ft x 12ft 8.5 inch 80 Elite
10ft x 15ft 8.5 inch 84 Elite
14ft 8.5 inch 84 Jump Capsule MK3
10ft x 15ft oval 8.5 inch 85 Jump Capsule MK3
15ft x 15ft 8.5 inch 104 Elite

*Orbit or Vortex BLACK? Three sizes have the same spring length and number of springs in both ranges: the 7ft x 10ft oval (54 springs, 5 inch), the 12ft (72 springs, 7 inch) and the 14ft (88 springs, 7 inch).

To tell them apart, look at the frame. Vortex BLACK has a fully black powder-coated frame. Orbit has a yellow trim.

If you only need springs, it does not matter which one you have, because the springs are the same at these sizes. You only need to know the model when you order a frame pad or safety net.

Super Tramp trampolines

These are the Super Tramp trampolines we sell today. Find the row that matches all three of your measurements.

Frame size Spring length Number of springs Your trampoline is
12ft round 8.5 inch 80 Fun Bouncer
14ft round 8.5 inch 96 Super Bouncer
10ft x 7ft 7 inch 68 XR 300
10ft 11in x 8ft 4in 8.5 inch 74 King 110
12ft x 8ft 8.5 inch 84, plus one spring in each corner (88 springs in total) XR 360
14ft 5in x 8ft 3in 8.35 inch 100 Kangaroo or Super Kangaroo
16ft 11in x 9ft 10in 9.25 inch 118 Boomer
No metal triangles? On the Boomer, Kangaroo and Super Kangaroo the springs hook onto the bed, and a black anchor strap links each spring to the frame. Count the springs in the same way.

Have an older Super Tramp, such as a Superflyer, Cosmic Bouncer, Springtime, Eclipse, Wallaby or Prince 18? Use the full guide on the Super Tramp website.

Akrobat trampolines

Akrobat lists spring lengths in centimetres, so both are shown. Several Akrobat ranges share the same frame size and springs, so check whether your trampoline stands above the ground on legs or sits flat to the ground.

Frame size Spring length Number of springs Above ground Flat to the ground
10ft round 18cm (7 inch) 64 Orbit -
10ft round 21.5cm (8.5 inch) 64 Orbit Pro Orbit Flat or Primus Flat
12ft round 21.5cm (8.5 inch) 80 Orbit or Orbit Pro Orbit Flat or Primus Flat
14ft round 21.5cm (8.5 inch) 96 Orbit or Orbit Pro Orbit Flat or Primus Flat
10ft x 6ft 18cm (7 inch) 68 Orbit Orbit Flat or Primus Flat
11ft x 8ft 21.5cm (8.5 inch) 72 Primus Challenger PLUS -
11ft x 8ft 21.5cm (8.5 inch) 80 Orbit Orbit Flat or Primus Flat
14ft x 10ft 21.5cm (8.5 inch) 98 Primus Challenger PLUS -
14ft x 10ft 21.5cm (8.5 inch) 104 - Primus Flat
17ft x 10ft 21.5cm (8.5 inch) 114 Primus Challenger PLUS Primus Flat Plus
More than one model in your row? The model name is printed on the frame pad or safety net. Spare parts differ between Akrobat models, so check the name before you order. If you cannot find it, send us a photo and we will confirm it for you.

Can't find a match, or have a different brand? Get in touch with your three measurements and a photo of the trampoline, and we will identify it for you.
